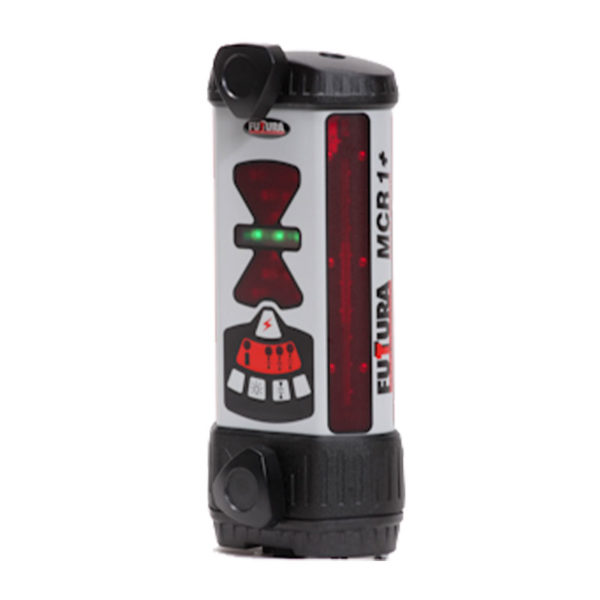

Futtura MCR1w

Description

Economical Machine Control Solutions!

MCR receivers from Futtura are designed to adapt to any earth moving machine. Ideal for grading, trenching and excavating.

MCRw receivers from Futtura are designed to adapt to any earth moving machine. All receivers feature The MCRw receivers work with rotating lasers. The laser provides a reference plane of laser light over the jobsite. The MCRw is mounted above the machine’s cutting edge on grading equipment or on the dipper arm of excavation equipment. The receiver is initially set on-grade to a known desired elevation or benchmark. As the machine is used and the blade or bucket is moved, the operator is given a visual indication of which direction to move the blade or bucket to get to on-grade, effectively checking grade from the cab.

Features:

  • Completely Self-Contained
  • 360° Reception
  • Selectable Accuracy
  • Wireless Bluetooth Compatible to RD25
  • Waterproof Design
  • Heavy Duty Construction
  • Low Battery Indicator / Auto Shut-Off
  • Selectable Bright / Dim Display
  • Selectable Excavator Offset Grade
  • Warranty: 2 Years

Specifications

Laser Receiver Comparative
Chart
Futtura MCR1w
Futtura MCR2w
Futtura MCR3w


With Nickel Metal
Hydryde
rechargeable
batteries
Same as MCR 1w
plus built-in
Plumb &
Tilt Indication
Same as
MCR 2w
plus “ACE”
Vertical reception: 170 mm (6.5″) 170 mm (6.75″) 220 mm (8.75″)
Accuracy on set-up: Grading 5 mm (3/16″)
Excavate 6 mm (1/4″)
Fine: 5 mm (3/16″) 5 mm (3/16″) Grading 10 mm (7/16″)
Excavate 12 mm (1/2″)
Standard: 12 mm (1/2″) 12 mm (1/2″) Grading 20 mm (7/8″)
Excavate 25 mm (1″)
Wide: 34 mm (1 1/4″) 25 mm (1″) Grade 40 mm (1 5/8″)
Excavate 50 mm (2″)
ACE – Angle
Compensation Mode
Fine 12 mm (1/2″)
Standard 25 mm (1″)
Operating Range: Up to 610 m (2,000 ft.) Up to 460 m (1,500 ft) Up to 610 m (2,000′)
Power Options:
Alkaline – 4 x “C” cell OR Nickel Metal Hydride “C” cell
Power cable – 10-30 VDC
Battery life Alkaline: Up to 75 hours Up to 60 hours Up to 60 hours
Battery life NiMH: Up to 50 hours Up to 45 hours Up to 45 hours
Dimensions (LxWxD)
13.5″ x 5.6″ x 5.9″
15.5″ x 5.6″ x 5.9″
Weight (shipping): 5.4 kg (12 lbs.) 5.5 kg (12 lbs.) 5.7 kg (12.5 lbs.)
Mounting Pipe:
42 mm to 50 mm (1.65 to 2″) O.D. round tube
38 mm (1.5″) square tube
Operating Temp:
-20° to plus 60° C – (-4° F to 140° F)
Specifications subject to change without notice

Brochure

View MCR Series Brochure
