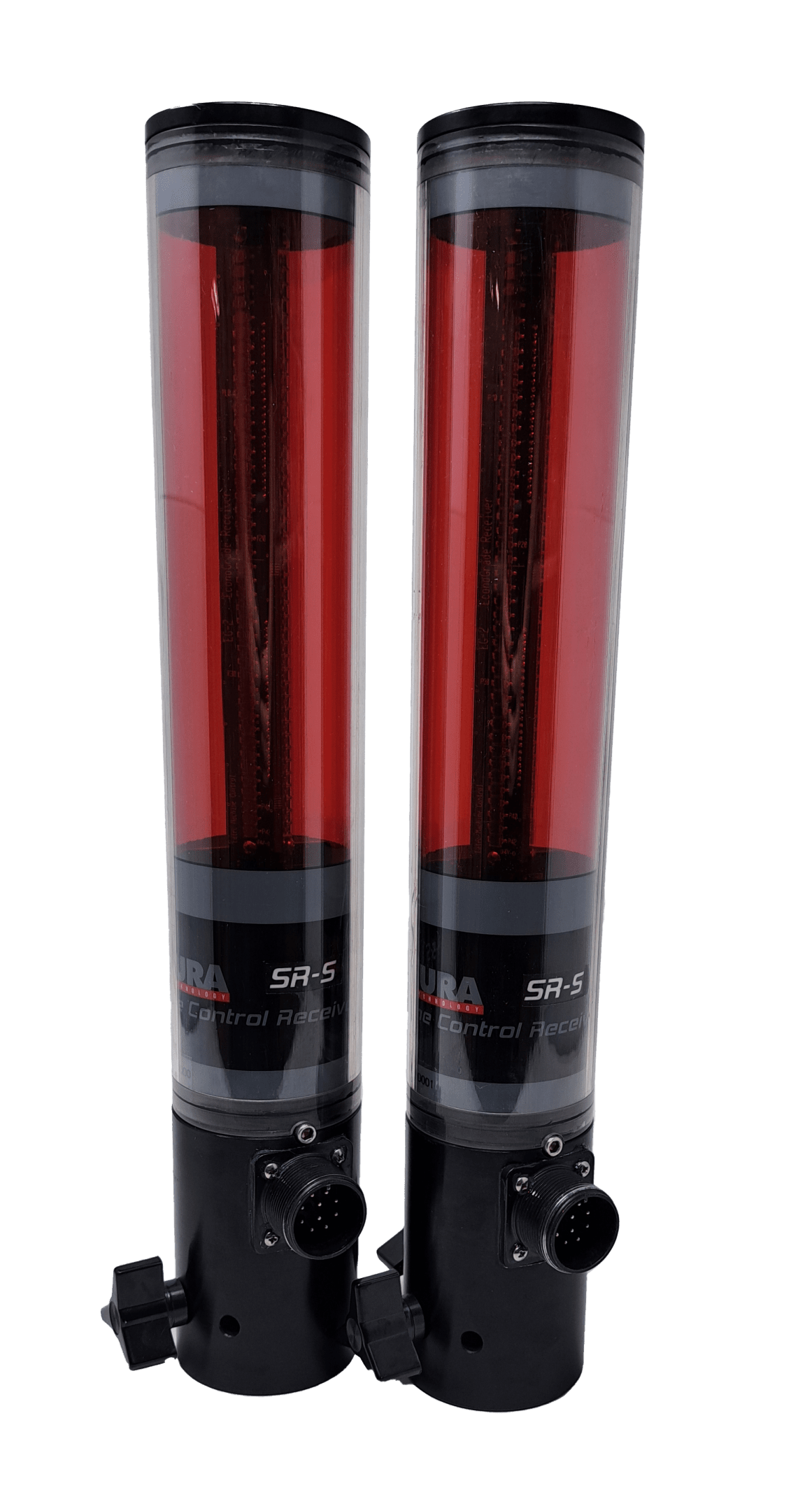

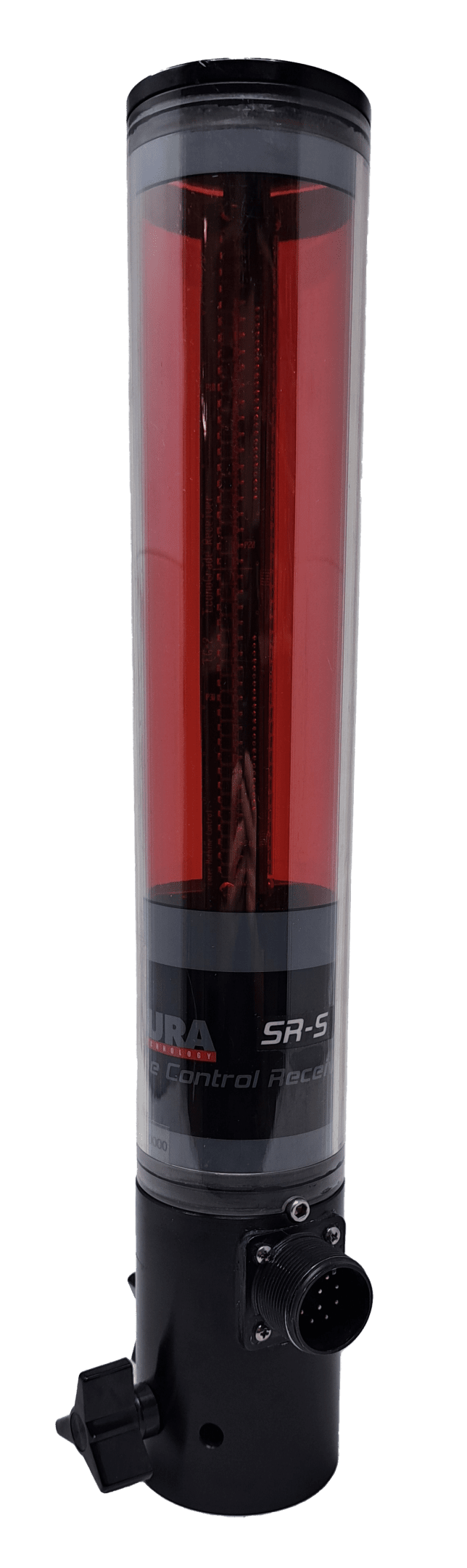

Futtura SR-S
The SR-S modified EG receiver adjusts the height of your laser screed without the need for a control box. The SR-S transmits signals directly to the Somero Copperhead’s operations box, offering a pin-compatible replacement for the GCR-4 receiver.
Description
Key features of the SR-S include:
● Accuracy of +/- 3.5mm to +/- 1mm (laser dependent)
● 7mm on-grade band
● LED indication
● 12-30 VDC supply voltage
● Typical current consumption of 100 mA
● Compatibility with 300-900 RPM lasers
● 160mm photocell receiving width
● 360° beam detection capability
● EG1/EG2 compatibility
● Pin compatibility to replace Trimble GCR-4 Receiver
● Warranty coverage: 1 year
