Looking for a rugged, reliable laser? A laser you can count on to increase quality and efficiency? A laser that provides maximum impact at a minimum price? You’ve found it. The RL-H5A laser is the durable, long range, high accuracy solution you need.

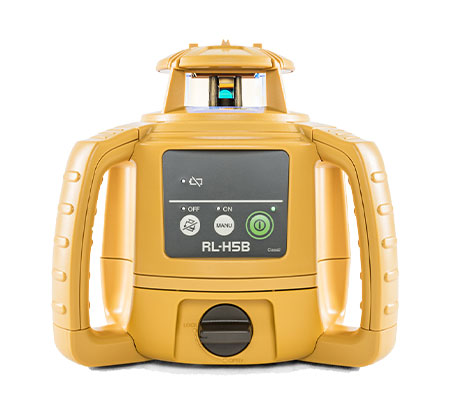

With great distance and high-accuracy — The RL-H5B is a next-generation self-leveling construction laser.

  • Long-range operation (400 m)
  • Smart long-range receiver
  • Tough IP66 weatherproof rating
  • ±20 Arc second horizontal accuracy
  • ±5 Degrees self-leveling range
  • Up to 100 hours battery life

RL-H5 Series is perfect for:

  • Geopositioning
  • Land Surveying
  • Topography & As-Built
  • Geospatial Monitoring
  • Civil Engineering & Design
  • Construction Survey/Layout
  • Foundation and Exterior

The RL-H5B Package Includes:

  • RL-H5B Laser
  • LS-80L Sensor
  • Sensor Holder
  • Batteries
  • Charger
  • Carry Case



H: ±20 arc seconds
Self-Leveling Range:
Horizontal ±5°
Working Area:
400 m
Rotation Speed:
600 rpm
Dust/Water Rating:
Operating Time:
Alkaline: 100 hours, Ni-MH: 60 hours
Operating Temp.
-20ºC to 50ºC
Size (H x W x L)
205 x 211 x 172 mm


View RL-H5A Automatic Laser Brochure
