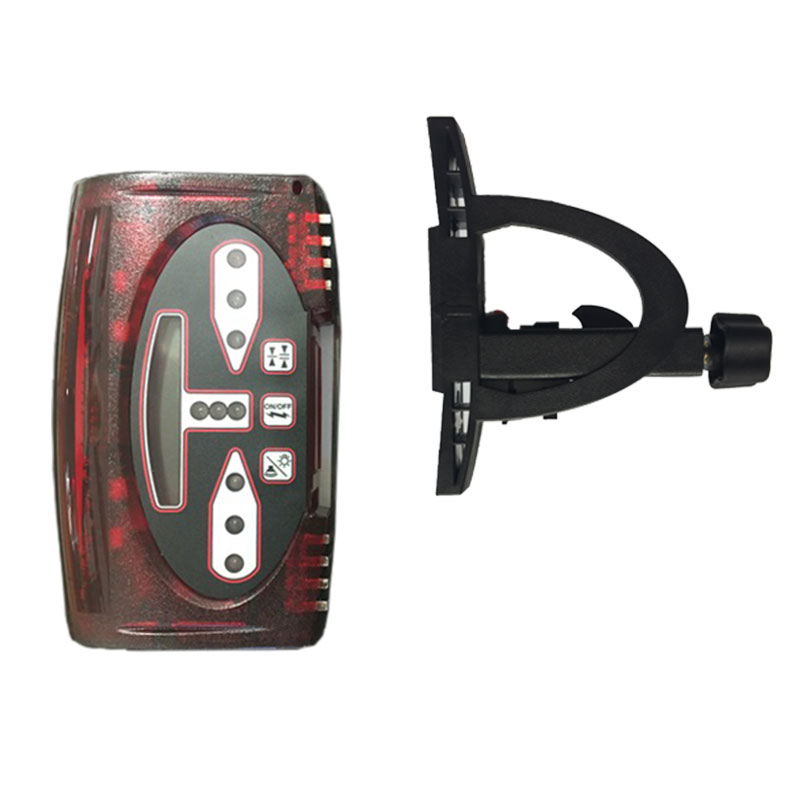

Futtura CR5 Laser Receiver

Description

The CR5, the world’s most versatile premium laser receiver, is a combination of a machine-mounted receiver & a survey rod receiver.

The CR5 combination receiver is designed for all rotating lasers and can be hand-held, rod-mounted, or magnetically attached to your machine, making it the most versatile laser receiver in the industry.

The CR5 is perfect for:

  • Backhoes
  • Dozers
  • Box Blades
  • Excavators
  • Skid Steers
  • Rod Mounted Readings

Machine Control Featured Benefits

  • MC display receiver works with any rotating laser
  • Magnetically mounts to any machine
  • Rugged & durable 100% waterproof housing
  • Bright LED’s with green on-grade
  • Strobe light rejection
  • Adjustable volume control
  • With optional SR-RC clamp can be used on grade rod

The CR5 is a combination of:

  • all in one compact package
  • a hand-held receiver
  • rod-mounted receiver
  • a machine-mounted receiver

Specifications

Specifications:

  • Rugged & durable 100% waterproof housing
  • Bright LED’s with green on-grade
  • Strobe light rejection
  • Adjustable volume control
  • 240° angular reception
  • 5″ laser capture height
  • 3 accuracy settings
  • Reception Range: 1,000′ (300 m)
  • Detection Height 5.0″ (127mm)
  • Beeper Volume: High 105-110db, Low 70-75db
  • Display Channels: 9
  • Marking Notch Offset: N/A
  • Battery Life: Normal 160 hrs
  • Warranty: 2 years

Brochure

View Futtura CR5 Laser Receiver Brochure
